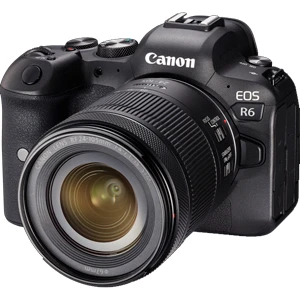

Canon® Canon EOS R6 + RF 24-105 F4-7.1 IS STM Lens Kit

Image Sensor

• Type – 35.9 x 23.9 mm CMOS
• Effective Pixels – Approx. 20.1 megapixels
• Total Pixels – Approx. 21.4 megapixels
• Aspect Ratio – 3:2
• Low-Pass Filter – Built-in/Fixed
• Sensor Cleaning – EOS integrated cleaning system
• Colour Filter Type – Primary Colour
• Sensor Shift-IS – Yes, up to 8-Stops advantage depending on the lens used

Image Processor

• Type – DIGIC X

Lens

• Lens Mount – RF (EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R) – EF-M lenses are not compatible
• Focal Length – Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S

Focusing

• Type – Dual Pixel CMOS AF
• AF System / Points – 100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes 100% horizontal and 90% vertical with manual selection and large zone modes
• AF Working Range – EV -6.5 – 20 (at 23°C & ISO100)
• AF Modes – One Shot Servo AF AI Focus AF (in A+ Scene Intelligent Auto mode )
• AF Point Selection – Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected. Manual selection: 1-point AF (AF frame size can be changed) 6072 (stills)/ (4968) movie AF positions available. Manual selection: AF point Expansion 4 points (up, down, left, right). Manual selection: AF point Expansion surrounding points. Manual selection: Zone AF (all AF points divided into 9 focusing zones). Manual selection: Large Zone AF (Vertical). Manual selection: Large Zone AF (Horizontal).
• AF Lock – Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
• AF Assist Beam – Emitted by built in LED or optional dedicated Speedlite (flash)
• Manual Focus – Selected on lens

Exposure Control

• Metering Modes – Real-time with image sensor, 384-zone metering. (1) Evaluative metering (linked to All AF points) (2) Partial metering (approx. 5.8% of viewfinder at centre) (3) Spot metering: Centre spot metering (approx. 2.9% viewfinder at centre) AF point-linked spot metering not provided (4) Centre weighted average metering
• Metering Brightness Range – EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock – Auto: AE lock takes effect when focus is achieved. Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation – +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
• AEB – +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker Shooting – Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
• ISO Sensitivity- Auto 100-102400 (in 1/3-stop or 1 stop increments). ISO can be expanded to L:50, H:204,800

Shutter

• Type – Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
• Speed – 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release – Soft touch electromagnetic release

White Balance

• Type – Auto white balance with the imaging sensor
• Settings – AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber +/-10 2. Magenta/Green +/-10
• Custom White Balance – Yes, 1 setting can be registered
• WB Bracketing – +/-3 levels in single level increments. 3, 2, 5 or 7 bracketed images per shutter release. Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

• Type – 0.5-inch OLED colour EVF
• Dot Count – 3.69 Million dots
• Coverage (Vertical/Horizontal) – Approx. 100%
• Magnification – Approx. 0.76x
• Eyepoint – Approx. 23mm (from eyepiece lens centre)
• Dioptre Correction – -4 to +2 m-1 (dioptre)
• Viewfinder Information – Shutter speed, Aperture, ISO speed, AF point information, Exposure level indicator, Number of remaining exposures, Exposure compensation, Battery level, Electronic shutter, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Self-timer shooting mode, Maximum burst, AF method, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still/video cropping, Shooting mode, Aspect ratio, Scene icons Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi on/off, , Histogram, Electronic level, Focus distance scale in manual focus, IS system, Audio Level – Manual (video), recording time remaining (video), headphone level (video), Video recording resolution frame rate and compression (video) Rec indicator (video)
• Depth of Field Preview – Yes, via customised button
• Eyepiece Shutter – N/A

LCD Monitor

• Type – 7.5cm (3.0″) Clear View LCD II, approx. 1.62 million dots
• Coverage – Approx. 100%
• Viewing Angle (Horizontally/Vertically) – Approx. 170° vertically and horizontally
• Coating – Anti-smudge
• Brightness Adjustment – Manual: Adjustable to one of seven levels. Colour Tone Adjustment: 4 settings
• Touch Screen Operations – Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
• Display Options – (1) Basic Camera settings (2) Advance Camera settings (3) Camera settings plus histogram and dual level display (4) No info (5) Quick Control Screen

Flash

• Modes – E-TTL II Auto Flash, Metered Manual
• X-Sync – 1/200sec mechanical shutter / 1/250th electronic 1st curtain
• Flash Exposure Compensation – +/- 3EV in 1/3 or 1/2 stop increments with EX series Speedlite flashes
• Flash Exposure Bracketing – Yes, with compatible External Flash
• Flash Exposure Lock – Yes
• Second Curtain Synchronisation – Yes via Speedlite
• HotShoe / PC Terminal – Yes/No
• External Flash Compatibility – E-TTL II with EX series Speedlite, wireless multi-flash support
• External Flash Control – via camera menu screen

Shooting

• Modes – Stills; Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3) Movie: Auto Exposure, Manual
• Picture Styles – Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space – sRGB and Adobe RGB
• Image Processing – Highlight Tone Priority (2 settings) Auto Lighting Optimizer (3 settings) Long exposure noise reduction Clarity High ISO speed noise reduction (4 settings) (stills and video) Lens optical correction – Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only) Diffraction correction, Digital Lens Optimizer (during/after still photo shooting only) Resize to M, S1, S2 Cropping of images (JPEG/HEIF) – Aspect ratios 3:2, 4:3, 16:9, 1:1 – Switch between vertical and horizontal cropping orientation – Image straightening – Cropping frame can be moved using touch screen operation RAW image processing Multiple exposure HDR HEIF to Jpeg conversion
• Drive Modes – Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote)
• Continuous Shooting Max. Approx. 12fps. with Mechanical shutter, speed maintained for 1000+ JPEG or 240 RAW images.Max. Approx. 20fps. with Electronic shutter56, speed maintained for 1000+ JPG or 120 RAW images
• Interval Timer – Built in

File Type

• Still Image Type – JPEG: 2 compression options RAW: RAW, C-RAW 14 bit (14-bit with Mechanical shutter and Electronic 1st Curtain, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition) HEIF: 10bit HEIF is available in HDR shooting with [HDR PQ] set to [Enable] Complies with Exif 2.31 and Design rule for Camera File system 2.0 Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG Simultaneous Recording – Yes, any combination of RAW + JPEG or RAW + HEIF possible
• Image Size – JPEG / HEIF, 3:2 ratio (L, RAW, C-RAW) 5472 x 3648, (M) 3648 x 2432, (S1) 2736 x 1824, (S2) 2400 x 1600 1.6x (crop) (L) 3408 x 2272, (S2) 2400 x 1600 4:3 ratio (L) 7280 x 5464, (M) 5152 x 3872, (S1) 3712 x 2784, (S2) 2112 x 1600 16:9 ratio (L) 5472 x 3072, (M) 3648 x 2048, (S1) 2736 x 1536, (S2) 2400 x 1344 1:1 ratio (L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600
• Folders – New folders can be manually created, named and selected
• File Numbering – (1) Consecutive numbering (2) Auto reset (3) Manual reset
• File Naming – 2 User presets

EOS Movie

• Movie Type – MP4 Video: 4K UHD, Full HD (16:9)
• Movie Size – 4K UHD (16:9) 3840 x 2160 (59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) 4K UHD Timelapse (16:9) 3840 x 2160 (29.97, 25fps) intra frame (All-I) Full HD (16:9) 1920 x 1080 (119.88, 100, 59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) 9 Full HD (16:9) 1920 x 1080 (29.97, 25fps) light inter frame, (IPB light) Full HD Timelapse (16:9) 1920 x 1080 (29.97, 25fps) intra frame (All-I) Full HD HDR (16:9) 1920 x 1080 (29.97, 25fps) intra frame (All-I){foot}
• Colour Sampling (Internal Recording) – 4K/ Full HD – YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
• Canon Log – Yes, Canon Log 1
• Movie Length – Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT formatted SD card.
• High Frame Rate Movie – Full HD at 100fps or 119.9fps. Recorded as 1/4-speed slow motion movie. Single scene maximum recording up to 7min 29sec.
• Frame Grab – 8.3-megapixel JPEG/HEIF still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)
• Bitrate / Mbps – MP4 H.264 Canon Log Off 4K (59.94p/50.00p): IPB Approx. 230 Mbps 4K (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps 4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps Full HD (119.88p/100.00p): IPB Approx. 120 Mbps 11 Full HD (59.94p/50.00p): IPB Approx. 60 Mbps Full HD (29.94p/25.00p/23.93p): IPB Approx. 30 Mbps Full HD (29.94p/25.00p): IPB Lite Approx. 12 Mbps Full HD Timelapse (29.97, 25fps) All-I Approx. 90Mbps Full HDR Movies (29.97, 25fps) IPB Approx. 30 Mbps MP4 H.265 Canon Log / HDR PQ: On 4K (59.94p/50.00p): IPB Approx. 340 Mbps 4K (29.97p/25.00p/23.98p): IPB Approx. 170 Mbps 4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps Full HD (119.88p/100.00p): IPB Approx. 180 Mbps {foot} Full HD (59.94p/50.00p): IPB Approx. 90 Mbps Full HD (29.94p/25.00p/23.93p): IPB Approx. 45 Mbps Full HD (29.94p/25.00p): IPB Lite Approx. 28 Mbps Full HD Timelapse (29.97, 25fps) All-I Approx. 135Mbps
• Microphone – Built-in stereo microphone (48 Khz, 16-bit x 2 channels)
• HDMI Display – Output to external monitor only (output of images and shooting information, images are recorded to the card) Camera screen and External Monitor output (no recording to the card, camera screen shows images with shooting information)
• HDMI Output – 4K (UHD) 59.94p / 29.97p / 23.98p, Full HD 59.94p / 59.94i, 50.00p / 50.00i 480p 59.94p 576p 50p Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible
• Focusing – Dual Pixel CMOS AF with Eye/Face Detection and Animal Tracking AF, Movie Servo AF. Manual Focus (Peaking and Focus Guide available)
• ISO – Auto: 100-6400, H: 204800 Manual: 100-25600, H: 204800

Other Features

• Custom Functions – 21 Custom Functions
• Metadata Tag – User copyright information (can be set in camera) Image rating (0-5 stars) IPTC data (registered with EOS Utility) Image transfer with caption (Caption registered with EOS Utility)
• LCD Panel / Illumination – No/No
• Water/Dust Resistance – Yes
• Voice Memo – No
• Intelligent Orientation Sensor – Yes
• Playback Zoom – 1.5x – 10x in 15 steps
• Display Formats – (1) Single image (2) Single image with information (2 levels) Basic – Shooting information (shutter speed, aperture, ISO and Image quality) Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating) (8) Movie edit (9) RAW processing (10) Rating
• SlideShow – Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating Playback time: 1/2/3/5/10 or 20 seconds Repeat: On/Off
• Histogram – Brightness: Yes RGB: Yes
• Highlight Alert – Yes
• Image Erase – Single image, select range, Selected images, Folder, Card
• Image Erase Protection – Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer – 3 or 10 sec.
• Menu Categories – (1) Shooting menu (2) AF Menu (3) Playback menu (4) Network (5) Setup menu (6) Custom Functions menu (7) My Menu
• Menu Languages – 29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update – Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter)

Interface

• Computer – SuperSpeed USB 3.1 Gen 2 USB C connector
• Wi-Fi – Wireless LAN (IEEE802.11a/b/g/n) (2.4 GHz) 13 with Bluetooth 4.2 support. Features supported – EOS Utility, Smartphone, Upload to image.canon, Wireless printing
• Other – HDMI micro out (Type D), External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack), E3-type terminal (remote control terminal)

Direct Print

• PictBridge – Not supported

Storage

• Type – 2x SD/SDHC/SDXC and UHS-II

Supported Operating System

• PC – Windows 8.1 and Windows 10 (tablet mode not supported)
• Macintosh – OS X v10.12, 10.13, 10.14, 10.15

Software

• Image Processing – Digital Photo Professional 4.12.4 or later, Digital Photo Professional Express mobile app ( iPad only ) (RAW Image Processing)
• Other – EOS Utility 3.12.3 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera Connect app, Mobile File Transfer app and image.canon app (iOS/Android)

Power Source

• Batteries – Rechargeable Li-ion Battery LP-E6NH (supplied)/LP-E6N
• Battery Life – With LCD Approx. 510 shots (at 23°C) 14 With LCD Approx. 510 (at 0°C) With Viewfinder Approx. 380 shots (at 23°C) {foot} With Viewfinder Approx. 380 (at 0°C)
• Battery Indicator – 6 levels + percentage
• Power Saving – Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
• Power Supply & Battery Chargers – Battery charger LC-E6E (supplied), AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6, PD-E1 USB power adapter

Physical Specifications

• Body Materials – Magnesium Alloy chassis, outer panels are polycarbonate resin with glass fiber
• Operating Environment – 1 – 40 °C, 85% or less humidity
• Dimensions (W x H x D) – 138.4 × 97.5 × 88.4 mm
• Weight (Body Only) – Approx. 598 g (680 g with card and battery)
